| Capacities | |
| rpm @ Continuous Operating Torque | 51 rpm @ 10.8 ft·lbs (130.0 in·lbs) [1.5kg-m] [15N-m] |
| Shaft Rotation | Clockwise or Counterclockwise |
| Maximum Speed | 59 rpm |

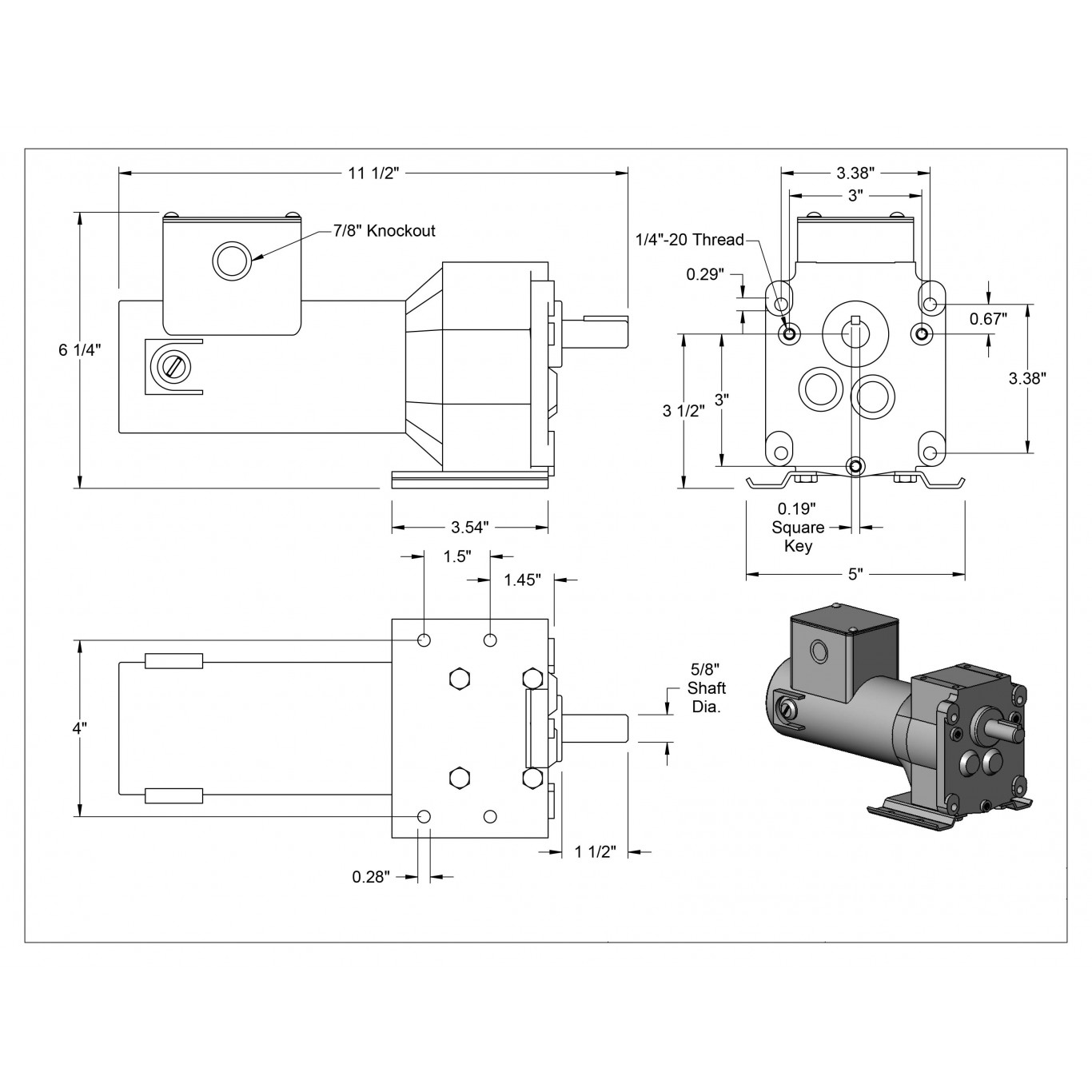

| Dimensions | |
| Drive Shaft Dia. | 0.625" (5/8") [15.88mm] |
| Drive Shaft Length | 1.500" (1-1/2") [38.10mm] |
| Center of Shaft to Base | 3.500" (3-1/2") [88.90mm] |
| Power | |
| Horsepower | 1/8 |
| Amps @ Full Load | 1.3 |
| Starting Torque | 21.7 ft·lbs (260.0 in·lbs) [3.0kg-m] [29N-m] |
| Features | |
| Shaft Orientation | Parallel |
| Support | |
| Phone and email Support | |
| Warranty | |
| Condition | |
| Product Condition | |

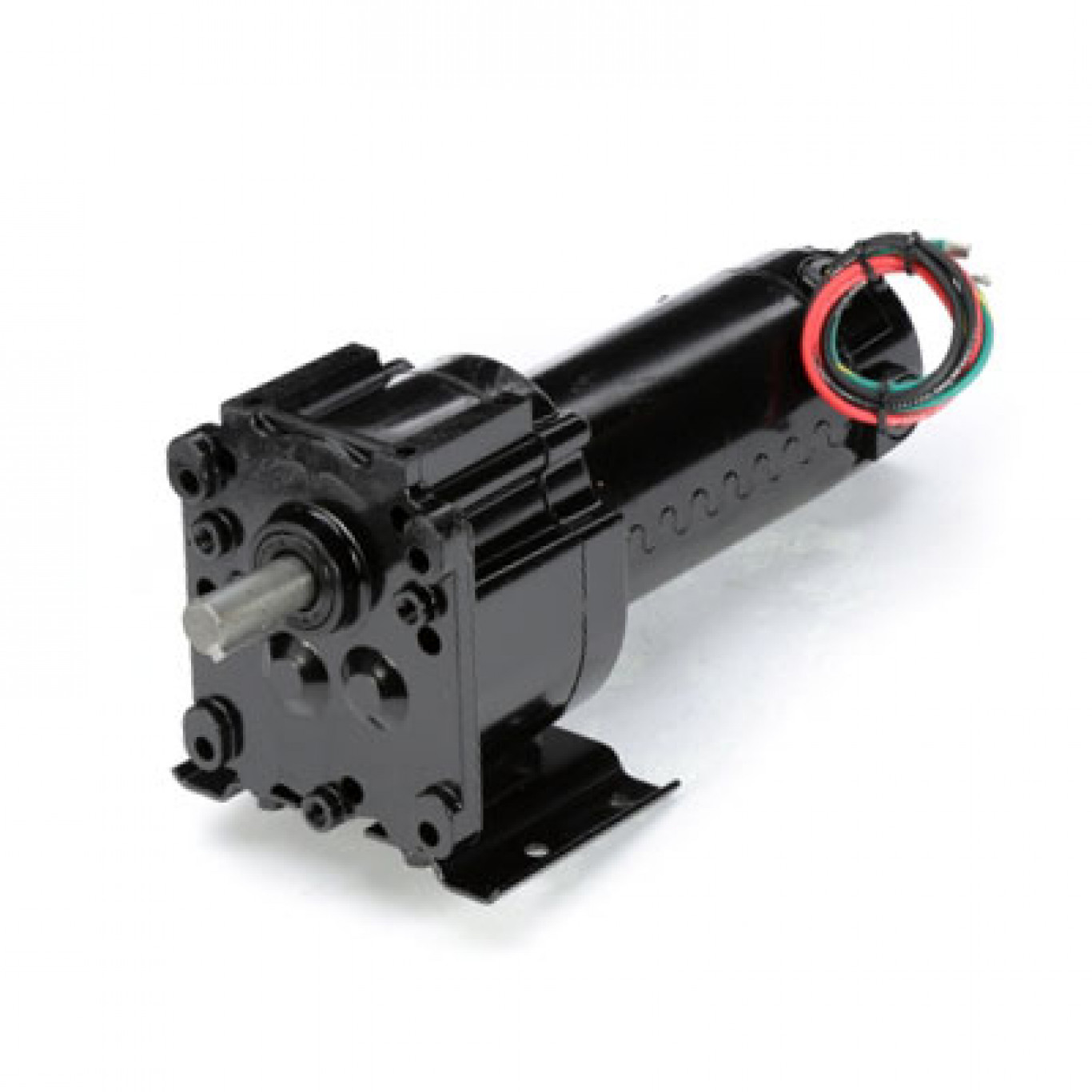

DC Gearmotor
-
Categories:
- FSCR
- DC Gearmotors
- Part #: 500432
- Availability: Ships in 1 - 2 weeks from our factory in Fairfield, NJ USA
-
$793.16 Each
