| Capacities | |
| Force @ 50 psi | 85 lbf [378 N] |
| Force @ 100 psi | 170 lbf [756 N] |
| Force @ 150 psi | 255 lbf [1,134 N] |
| Force @ 200 psi | 340 lbf [1,512 N] |
| Dimensions | |

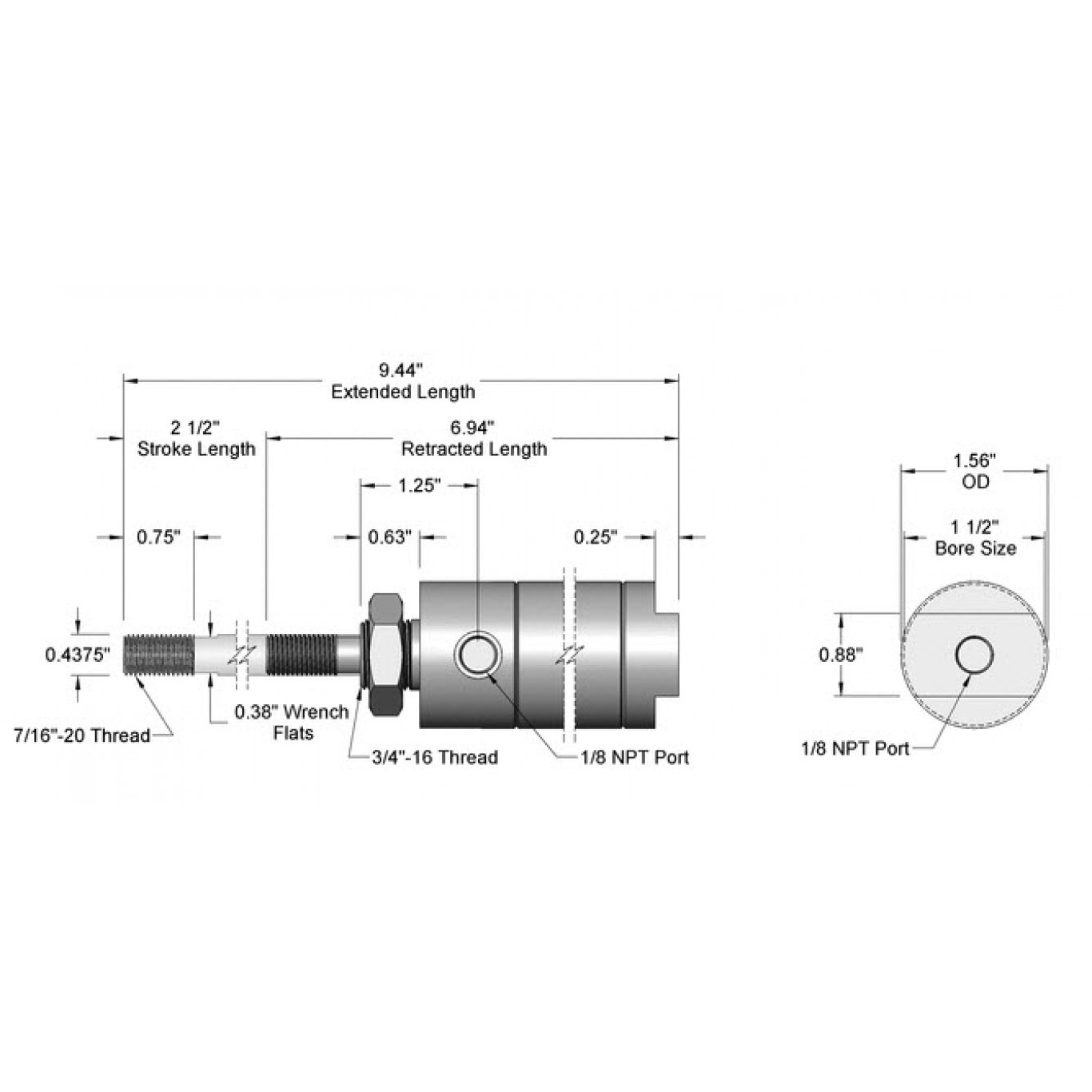

| Drawing | |
| 3D Model | |
| Bore | 1.500" (1-1/2") [38.10mm] |
| OD (Outer Diameter) | 1.562" (1-9/16") [39.67mm] |
| Stroke | 2.500" (2-1/2") [63.50mm] |
| Retracted Length | 6.937" (6-15/16") [176.20mm] |
| Extended Length | 9.437" (9-7/16") [239.70mm] |
| Air Inlet | 1/8" NPT Female |
| Rod Thread Size | 7/16"-20 |
| Nose Mount Thread Size | 3/4"-16 |
| Features | |
| Motion | Linear |
| Linear Air Cylinder Type | Round Body |
| Mount Type | Nose |
| Sensor Ready | Not Sensor Ready |
| Actuation Style | Double Acting |
| Support | |
| Phone and email Support | |
| Warranty | |
| Condition | |
| Product Condition | |

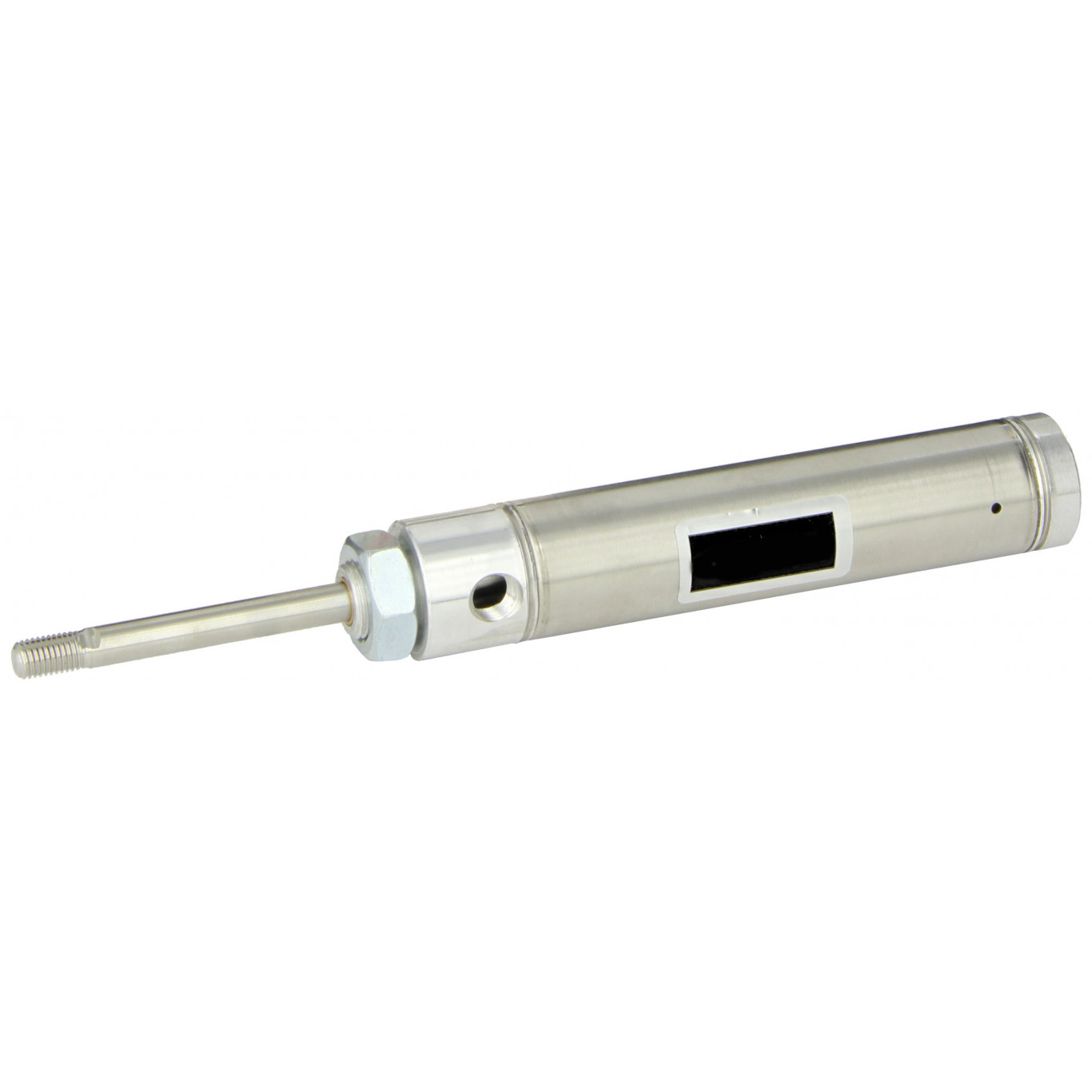

Round Bore Air Cylinder
-
Categories:
- Double-Acting Round Body Air Cylinders
- Part #: 500591
- Availability: Ships in 2 - 3 days from our factory in Fairfield, NJ USA
-
$119.03 Each
