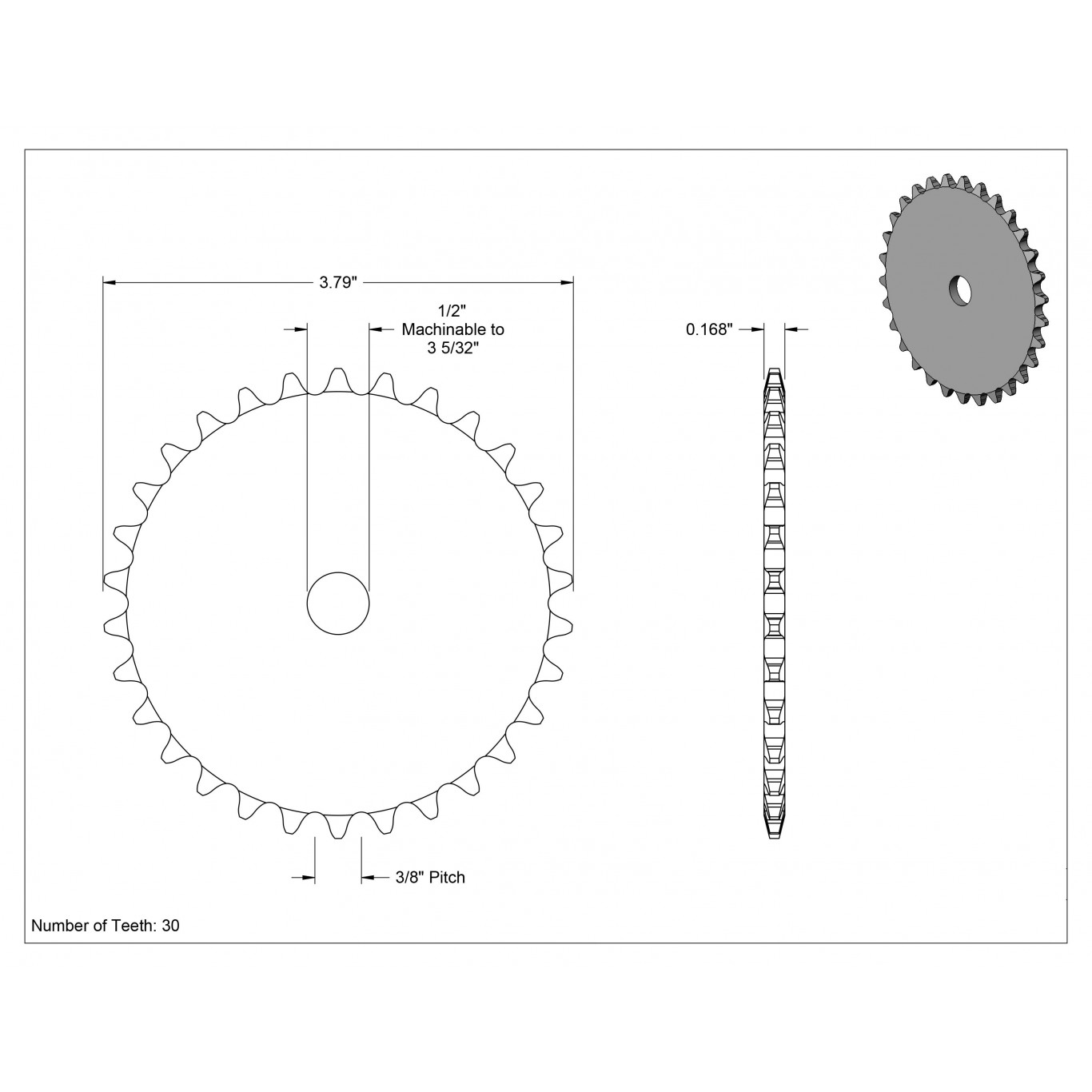

| Dimensions | |
| Number of Teeth | 30 |
| For Shaft Diameter | 0.500" (1/2") [12.70mm] |
| ID (Inner Diameter) | 0.500" (1/2") [12.70mm] |
| OD (Outer Diameter) | 3.790" (3-51/64") [96.27mm] |
| Overall Width | 0.168" (11/64") [4.27mm] |
| Features | |
| Material | Steel |
| For Roller Chain Strand Type | Single |
| For Roller Chain Standard | ANSI |
| For Roller Chain Trade Size | 35 |
| Pitch | 0.375" (3/8") [9.53mm] |
| Support | |
| Phone and email Support | |
| Warranty | |
| Condition | |
| Product Condition | |

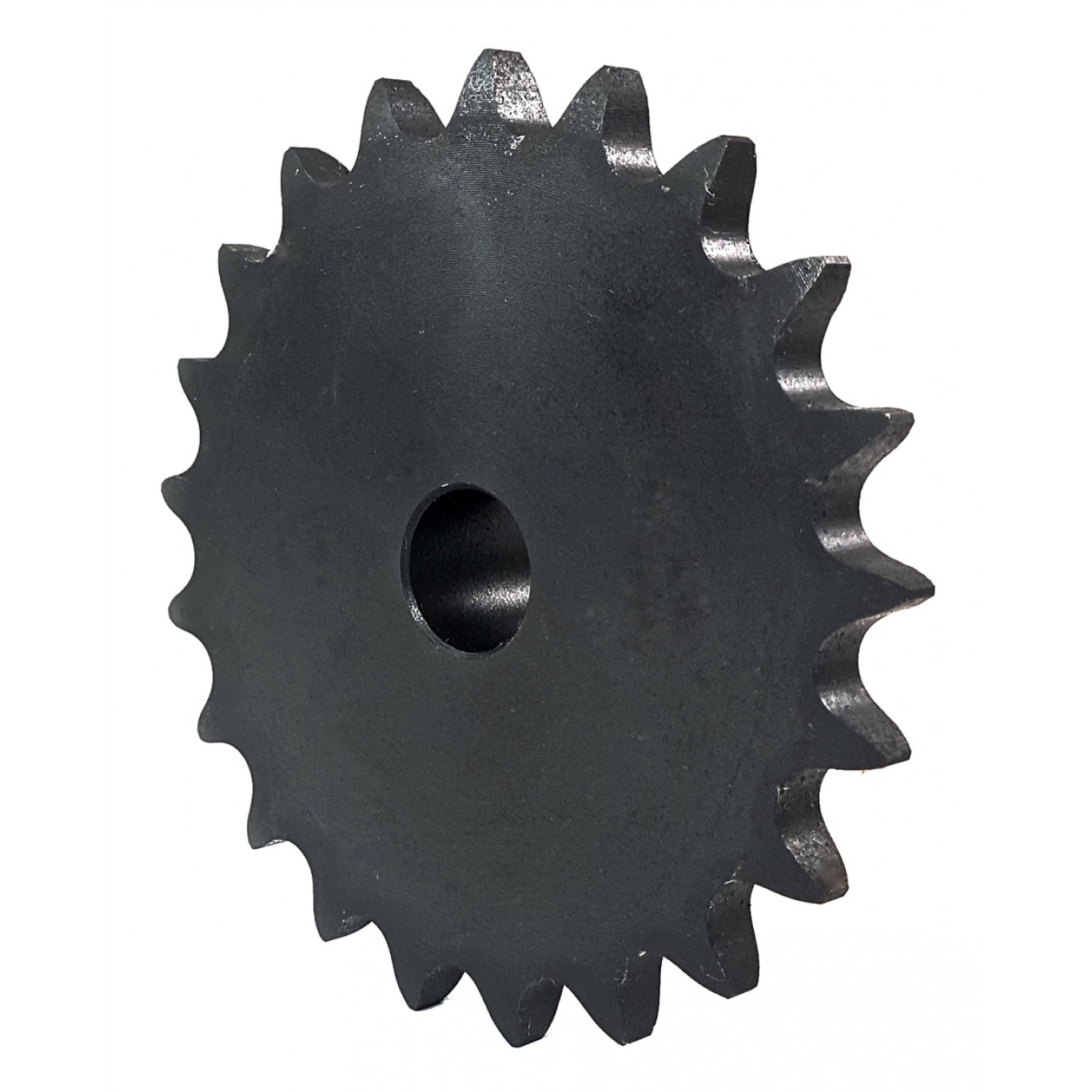

Machinable Bore Sprocket
-
Categories:
- FSCR
- Machinable Bore
- Part #: 501794
- Availability: Ships in 1 - 2 weeks from our factory in Fairfield, NJ USA
-
$47.63 Each
