| Application | Power |
| Relay Type | Timer |
| Timer Relay Function | Delayed Start (Delay-on-Make) |
| Number of Circuits Controlled | 2 |
| Switch Starting Position | 2 Off (Normally Open) or 2 On (Normally Closed) |
| Number of Terminals | 8 |
| Industry Designation | DPDT |
| Input Voltage | 120V AC/120V DC |
| Control Current | 17 mA |
| Timing Range | |
| Number of | 1 |
| Overall | 0.1 sec.-10 sec. |
| Timing Adjustment Style | Knob |
| Switching Current | |
| @ 240V AC | 10A |
| @ 28V DC | 8A |
| Operation Type | Mechanical |
| Mechanical Life Cycles | 10,000,000 |
| Height | 2.4" |
| Width | 1.7" |
| Depth | 2.9" |
| Mounting Location | Relay Socket |
| Socket Connection Type | Circular Pin Terminals |
| Specifications Met | UL Recognized CSA Certified CE Marked |
| RoHS | Compliant |
| Related Product | Relay Sockets |
Plug relays into relay sockets for fast installation and replacement. Use them in applications where machinery needs to turn on or off after a set period of time, such as in paint and conveyor lines.
Relay socket (sold separately) mounts to 35 mm DIN rail or flat surfaces.
| Power | |
| Input Voltage | 120V AC/120V DC |
| Features | |
| Timer Relay Function | Delayed Start (Delay-on-Make) |
| Support | |
| Phone and email Support | |
| Warranty | |
| Condition | |
| Product Condition | |

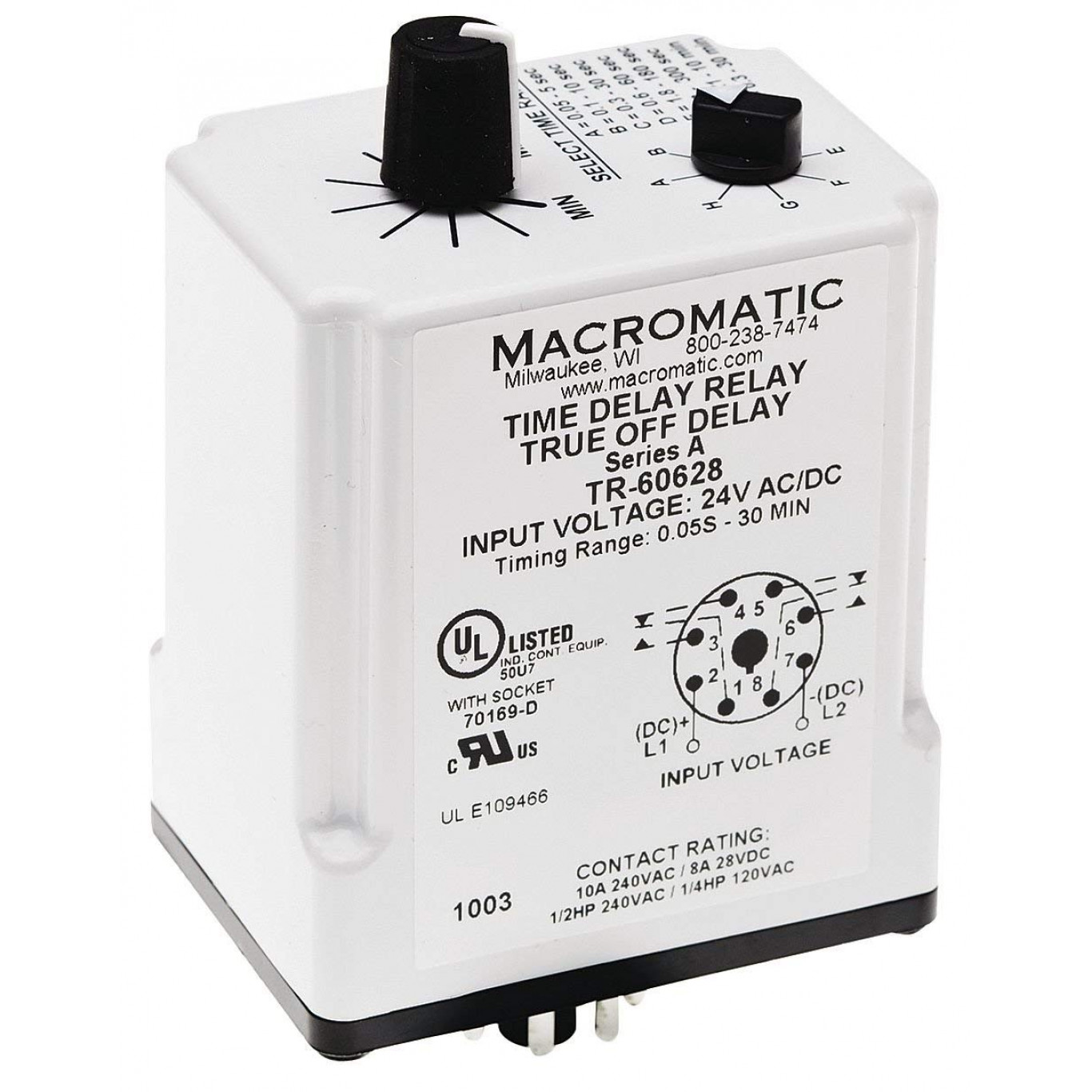

Socket-Mount Timer Relay
-
Categories:
- Socket-Mount Timer Relays
- Part #: 500553
- Availability: Ships in 2 - 3 days from our factory in Fairfield, NJ USA
-
$93.29 Each
